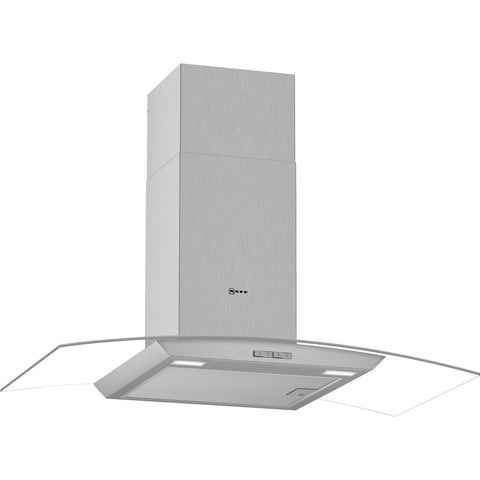

NEFF N30 D94ABC0N0B 90 cm Chimney Cooker Hood - Stainless Steel - A Rated
Additional information
Key performance features:
- Energy Efficiency Class: A (at a range of energy efficiency classes from A++ to E)*
- Max. extraction rate: 580 m3/h
- Noise max. Normal Level: 69 dB*
Features
- Push button control operation
- 3 power levels
- 2 x 1.5w LED Light
- Colour Temperature: 3500 K

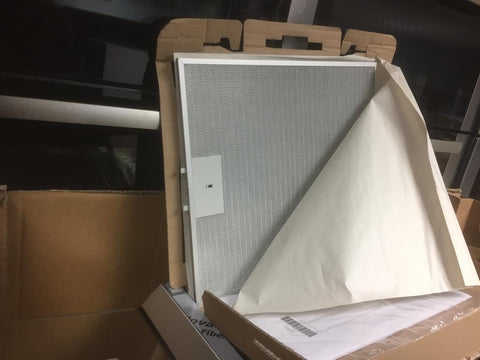

- 1 metal grease filter cassette
- For wall mounted installation
Design
- Stainless steel
- Glass design
- Chimney hood
- Push button control operation
- Mechanical controls
Performance/technical information
- Suitable for ducted extraction and recirculation
- For recirculated extraction recirculating kit or CleanAir recirculating kit (accessory) needed
- Max. extraction rate: 580 m3/h
- Maximum extraction rate exhaust air 580 m³/h according to EN 61591
- Extraction rate in recirculation mode:
Max. normal use: 340 m³/h - Noise max. Normal Level: 69 dB*
- Noise level according to EN 60704-3 and EN 60704-2-13 at max. normal use exhaust air: 69 dB(A) re 1 pW (57 dB(A) re 20 µPa sound pressure)
- Noise level in recirculation mode:
Max. normal use: 75 dB(A) re 1 pW (63 dB(A) re 20 µPa sound pressure) - Power rating: 220 W
- Light Intensity: 101 lux
- Colour Temperature: 3500 K
- Electrical cable length 1.3 m
- Diameter pipe Ø 150 mm (Ø 120 mm enclosed)
- Dimensions exhaust air (HxWxD): 617-947 x 900 x 488 mm
- Dimensions recirculating (HxWxD): 617-1057 x 900 x 488 mm
- Dimensions recirculating with CleanAir module (HxWxD):
686 x 900 x 488 mm - mounting with outer chimney
815-1145 x 900 x 488 mm - mounting with telescopic chimney - Energy Efficiency Class: A (at a range of energy efficiency classes from A++ to E)*
- Blower Efficiency Class: A*
- Lighting Efficiency Class: A*
- Grease Filtering Efficiency Class: B*
- Average Energy Consumption: 42.7 kWh/year*
Optional accessories
- Recirculating kit Z5270X0
General
| Type of appliance width (cm) | 90 cm |
|---|---|
| Depth of the product | 488 mm |
| Construction type | Built-in |
| Operating Mode | Convertible |
| Maximum output recirculating air (m3/h) | 340 m³/h |
| Sound pressure max. normal | 57 dB (A) |
| Type of control setting and signalling devices | push-button |
| Energy efficiency class (2010/30/EC) | A |
| Total annual energy consumption | 42.7 kWh/annum |
Connectivity
| Home Connect |
|---|
Construction type
| Diameter of air outlet (mm) | 120 / 150 mm |
|---|---|
| Color body | Stainless steel |
| Color chimney | Stainless steel |
| Grease filter material | Washable aluminium |
| Grease filter type | Kassette |
| Installation type | Wall-mounted |
| Material body | Glass, Stainless steel |
| Material chimney | Stainless steel |
| Number of motors (Stck) | 1 |
| Operating Mode | Convertible |
| Typology | Chimney |
Connection
| Connection rating (W) | 220 W |
|---|---|
| Length of electrical supply cord (cm) | 130 cm |
| Frequency (Hz) | 50; 60 Hz |
| Total power of the motors (W) | 215 W |
| Voltage (V) | 220-240 V |
