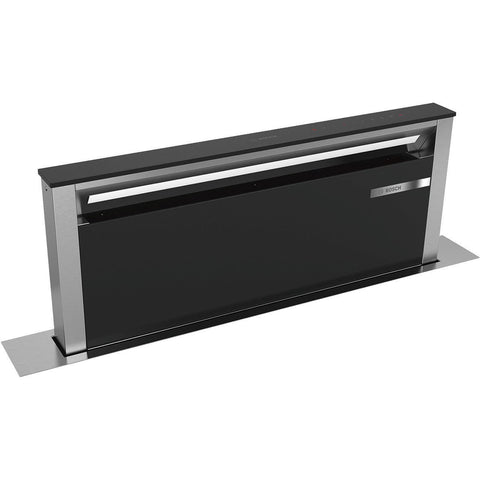

Bosch - Serie 8 DDD97BM60B Downdraft Extraction Cooker Hood

BOSCH

  • £1,40000
  • Save £494


Technical Specification
Bosch - Serie 8 Downdraft Extraction Cooker Hood

Energy Efficiency Class:

Extraction rate according to EN 61591 ø 15 cm:
max. Normal use 530 m³/h
Intensive 750 m³/h
Noise max. Normal Level: 62 dB*

Features
Electronic control
3 power levels and 2 intensive settings
TouchControl for extractor speeds and light
1 x 7W LED-module
Colour Temperature: 3500 K
Automatic after running (10 min)
2 removable metal grease filter cassettes
Saturation indicator for metal and charcoal filter.
Rim ventilation

Design
Black
Worktop ventilation
For installation in a kitchen cabinet
Suitable for regular or flush installation in worktops.
Extension height 300 mm

Performance/technical information
Suitable for ducted or recirculating operation
For recirculated extraction recirculating kit (accessory) needed
In recirculation mode no combination with gas hobs allowed.
Extraction rate according to EN 61591 ø 15 cm:
max. Normal use 530 m³/h
Intensive 750 m³/h
Noise level according to EN 60704-3 and EN 60704-2-13 exhaust air:
Max. normal use: 62 dB(A) re 1 pW (48 dB(A) re 20 µPa sound pressure)
Intensive: 67 dB(A) re 1 pW (53 dB(A) re 20 µPa sound pressure)
Noise max. Normal Level: 62 dB*
Power rating: 317 W
Light Intensity: 203 lux
Colour Temperature: 3500 K
Electrical cable length 1.5 m
Diameter pipe Ø 150 mm (Ø 150 mm enclosed)
Dimensions exhaust air (HxWxD): 738-1038 x 918 x 268 mm
Dimensions recirculating (HxWxD): 738-1038 x 918 x 268 mm
Energy Efficiency Class: A (at a range of energy efficiency classes from A++ to E)*
Blower Efficiency Class: A*
Lighting Efficiency Class: A*
Grease Filtering Efficiency Class: D*
Average Energy Consumption: 53.5 kWh/year*
